PCBN Solid Inserts for finish hard turning - Crossbill™ Wiper from Seco – unique and patented design
Wiper technology is now an established method for decreasing cycle times and increasing productivity.

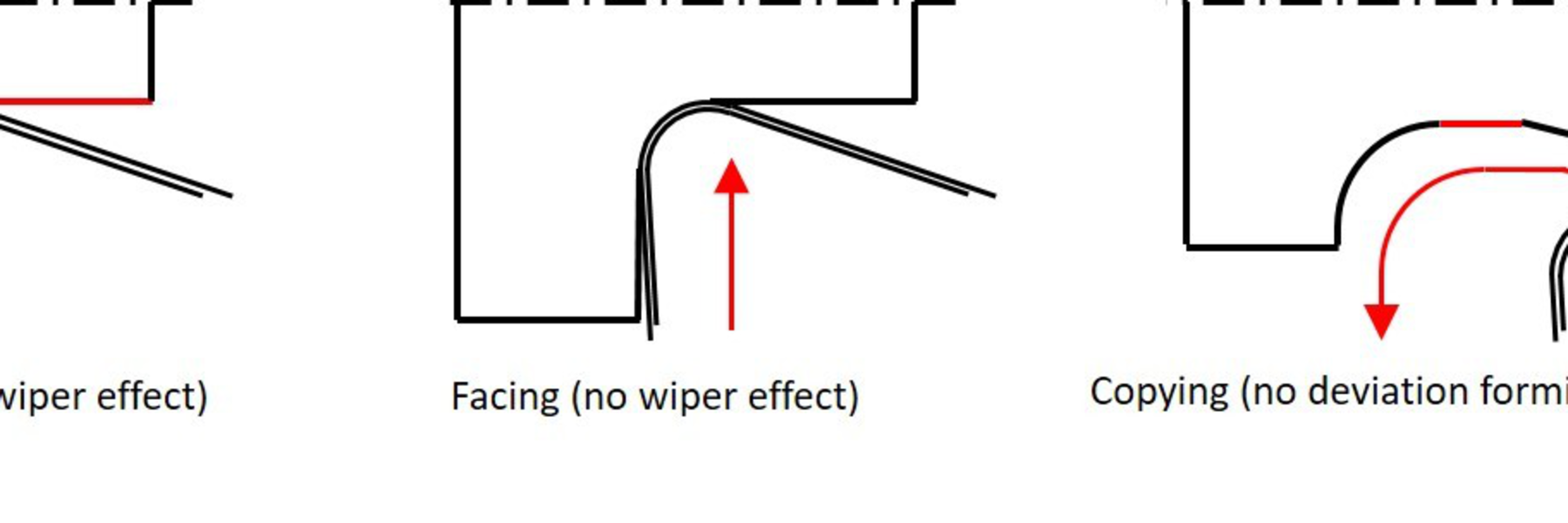

A drawback when machining with wipers, is that it is not possible to generate the true corner radius when machining towards a shoulder. The wiper goes all the way down the flank of the insert, so the wiper geometry will be copied into the corner.
The Crossbill™ wiper from Seco has addressed this issue. The unique patented design of the wiper allows for the utilization of handed wiper technology on all cutting edges on a solid insert.
The Crossbill™ wiper can be used for axial turning with all the usual benefits of wiper technology towards a shoulder and, due to the design, also machine a perfect radius.

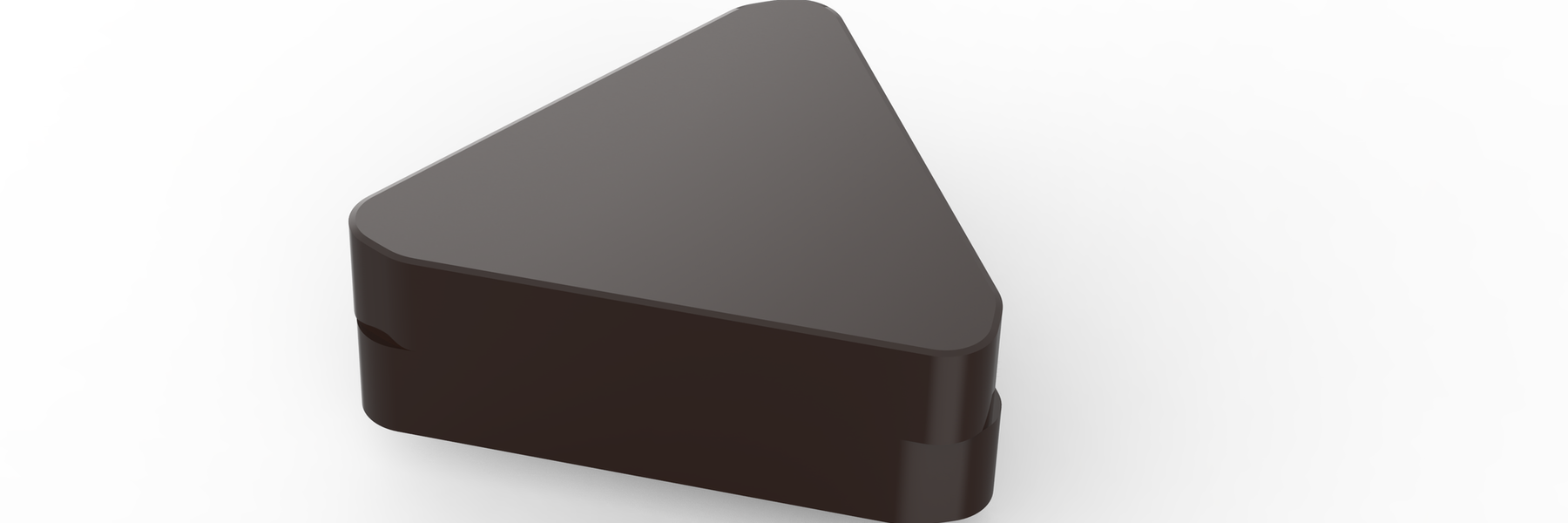

The Crossbill™ wiper inserts are available as TNGX110308S-01020-L-WZ and TNGX110308S-01020-R-WZ.
THE SECO WAY, CROSSBILL™ WIPER
WIPER TECHNOLOGY - PERFECT RADIUS - 6 CUTTING EDGES
Due to the new pricing structure for 2018 have the price level for solid TNGX110308S-01020-L-WZ and TNGX110308S-01020-R-WZ been considerable reduced and offering now an even more competitive alternative to brazed inserts.
For more information, please contact your local Seco representative, or our PCBN team.
