CV Joint
Constant velocity (CV) joints allow drive shafts to transmit power at variable angles and constant rotational speeds. The joints are often made from medium carbon steel, posing chip control issues when machined in fully automated operations. Hard machining operations are also necessary after components have been heat treated.
- Copying the shank diameter with maximum productivity and reliability
- Maintaining a reliable process for roughing ball ramps with maximum productivity
- Finishing ball ramps as productively and reliably as possible
- Minimising cycle times while reliably grooving in an interrupted cut
- Improving productivity and reliability for copying the shank diameter after heat treatment

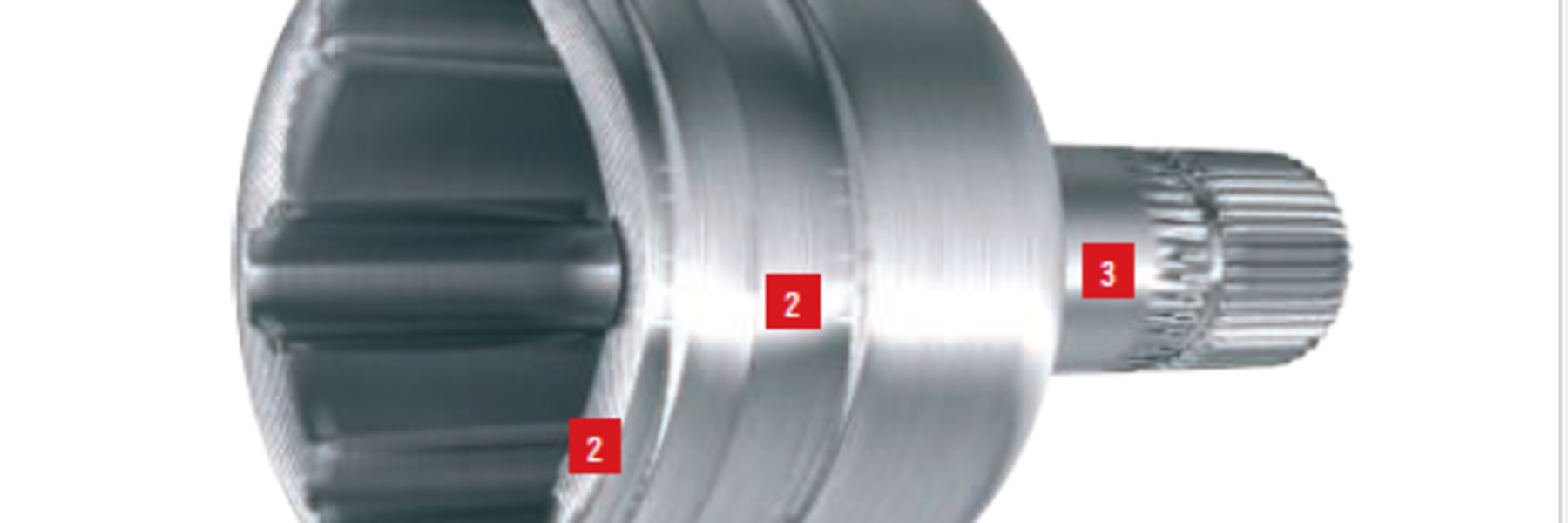

1 - Roughing the outer diameter
| Your Challenge: | | Maintaining efficiency through effective chipbreaking when roughing the outer diameter. |
| Our Solution: | | Jetstream Tooling delivers a high-pressure jet of coolant to the optimum position close to the cutting edge. In addition to eliminating heat build up, this lifts the chip away from the rake face to increase chip control and maximize tool life. Cutting parameters can also be further increased by using ISO/ANSI Duratomic® inserts. Your benefits include increased process reliability and productivity |
| Product: | | Seco-CaptoTM Jetstream Tooling Turning Tool |
2 - Copying the outer diameter groove
| Your Challenge: | | Copying the outer diameter groove with high productivity and excellent chip control. |
| Our Solution: | | MDT Jetstream Tooling delivers a high-pressure jet of coolant through the top clamp. The MDT system’s serrated contact surfaces between the insert and toolholder provide the cutting process with very good stability. This combination of advantages ensures safety and high performance during turning and grooving operations. Your benefits include increased process reliability and productivity. |
| Product: | | Seco-CaptoTM Jetstream Tooling MDT Grooving Tool |
3 - Copying the shank diameter
| Your Challenge: | | Copying the shank diameter with maximum productivity and reliability. | |
| Our Solution: | | The flexible Seco-Capto quick change turning head system reduces tool change times and can be error-proof modified for mass production applications. Offering highly rigid and accurate performance, the system also enables full automation of presetting by adding electronic data chips to the toolholders. Additionally, using ISO/ANSI Duratomic® inserts maximizes chip removal rate for this application. A wide variety of geometries guarantees efficient chipbreaking. Your benefits include reliable accuracy and increased efficiency. | |
| Product: | | Seco-CaptoTM Turning Tool | |

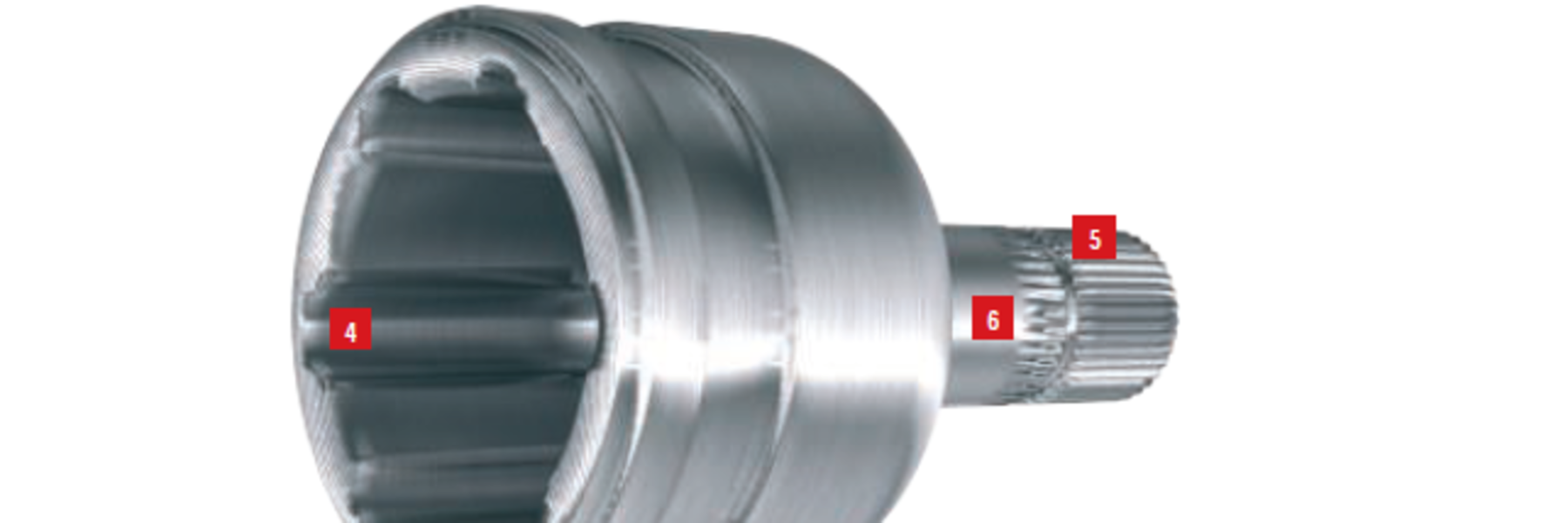

4 - Roughing ball ramps
| Your Challenge: | | Maintaining a reliable process for roughing ball ramps with maximum productivity. | |
| Our Solution: | | Designed for newer machine tools that can handle high metal removal rates, this custom tool uses a positive rake angle to increase tool life and minimize impact on the spindle. The thick and strong insert offers high reliability and features an edge design that allows for the use of high feed rates. Your benefits include reducing costs by getting the most out of your machine tool. | |
| Product: | | Custom Ball Nose Milling Cutter | |
4 - Finishing ball ramps
| Your Challenge: | | | Finishing ball ramps as productively and reliably as possible before heat treatment. | |
| Our Solution: | | | With edges and a helix that provide a light cutting action, Minimaster Plus offers an ideal means of finishing ball ramps. Additionally, incorporation of a unique head clamping system ensures high accuracy and performance while minimising cost and tool change times. Internal through coolant channels increase productivity and facilitate chip evacuation. Your benefits include cost and time savings while getting the level of precision your application demands. | |
| Product: | | | Minimaster Plus | |
5 - Minimising cycle times
| Your Challenge: | | | Minimising cycle times while reliably grooving in an interrupted cut. |
| Our Solution: | | | With a top clamp and serrated contact surfaces between the insert and toolholder, Secoloc insert clamping provides the MDT system with superb stability, which is then further enhanced through the use of long inserts. The Seco-Capto interface adds tremendous flexibility, and the ability to move to full automation by adding electronic data chips to the toolholders. CBN200 grade incorporates a unique metal binder with fine grain size to provide exceptional performance in hard turning. Your benefits include robust performance, high process security and shorter cycle times. |
| Product: | | | Seco-CaptoTM MDT Grooving Tool |
6 - Copying the shank diameter
| Your Challenge: | | | Improving productivity and reliability for copying the shank diameter after heat treatment. |
| Our Solution: | | | The Seco-Capto quick change turning head reduces tool change times and can be error-proof modified for mass production applications. The system also enables full automation of presetting by adding electronic data chips to the toolholders. Additionally, fine grain CH3515 inserts provide exceptional toughness in interrupted finish machining of hard steels rated 55 HRC – 64 HRC. Your benefits include reliable accuracy and increased efficiency. |
| Product: | | | Seco-CaptoTM Tool with PCBN Insert |
